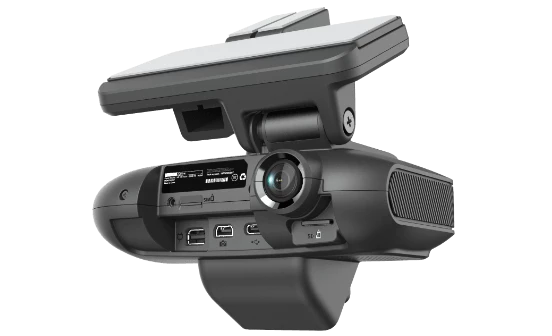

Multi IQ Camera
Protecting Drivers & Your Business
Get the visibility you need to improve safety and protect your drivers from false claims with the Multi IQ Camera that brings advanced video AI and multi-camera technology into one solution.
The platform turns video in to meaningful insight so you can empower drivers to reduce risk through real-time feedback, personalised coaching and driver rewards. With AI doing the heavy lifting you can instantly identify actions to reward, areas to improve and create an engaging coaching program that will accelerate change.
By capturing video from up 5 additional cameras you can also ensure that you always have the recordings you need to validate insurance claims and protect you're business from costly premium adjustments.
AI Powered Solution
Multi-Camera Visibility
Advanced Driver Assistance
Driver Training
Key Features
Protect drivers and your business with this all-in-one solution
- Forward and driver facing camera reviews every minute of drive time with AI detecting coaching events saving them into TN360

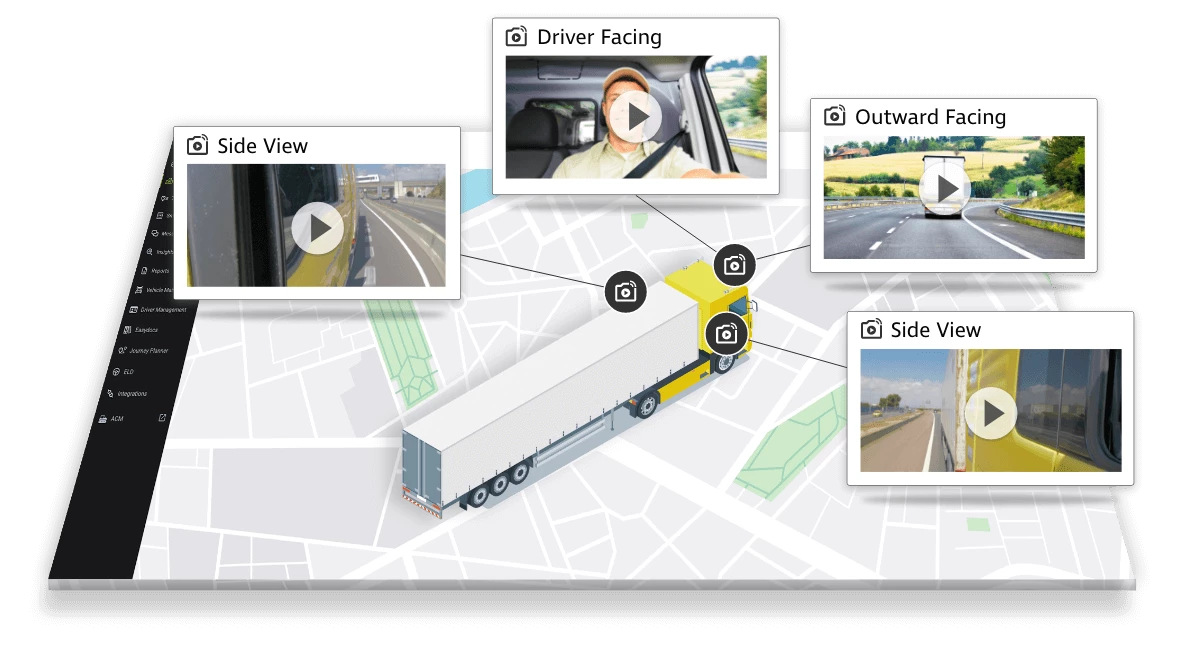

- Multi-camera capability with the option to add up to 5 additional cameras, covering the side and rear of the vehicle
- Drivers can initiate camera events for emergency situations, with footage saved in TN360
- Simple process to request video recordings for specific time periods to support driver protection
- Drivers status monitoring detects distracted driving, drowsy driving and mobile phone use to ensure driver safety
- Real-time in-cab feedback prevents incidents from occurring due to high-risk driving
- Manage camera events through a structured workflow where you can prioritise events and assign them to team members for review
Technical Specifications
See why this solution is right for you
Dimensions:
124 x 88.6 x 101mm (4.88 x 3.48 x 3.97")
Weight: 350g (12oz)
Battery: 10F SuperCAP (Approx. 18s backup power supply for video clip storage)
Current Consumption:
Full Run Mode: 5.75W (12V/ 480 mA)
Parking Mode: 60 mW (12V / 5 mA)
Speaker: Built-in Speaker x 1
Buttons: Emergency recording button
LED Indicators: Recording, WiFi and LTE
Certifications: CE, UKCA and RCM
Rating: IP40
Operational Temperatures:
-20° to +70°C (-4° to +158°F) Operating Temperature
-30° to +85°C (-22° to +185°F) Storage Temperature
Platform: Qualcomm® QCS610 Octa Core CPU, 2+6 Kyro, 2.2GHz / 1.8GHz
Operating System: AndroidTM 10 (non GMS)
Wireless Interface:
IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz)*
Bluetooth® 5.0 BLE
Non ADR: Qualcomm® Internal GPS / ADR: U-Blox NEO-M8L, LTE Cat. 4
FDD Band: 1/2/3/4/5/7/8/28
TDD Band: 40
WCDMA Band: 1/2/4/5/8
GSM Band: 2/3/5/8
SIM: Nano SIM Slot (SIM 1) and eSIM** (SIM 2)
Modem: Quectel EC25-EUX
* WiFi capabilities available in future software releases.
** Actual storage capacity may vary depending on use cases, selected frame rates, bit rates, and resolution.
Camera:
Forward: FOV: D 142.8°/H 120.4°/V 63.8° (+5%) - Full HD 1920 x 1080 @ 15 fps (configurable)
Inward: (IR): FOV: D 142.8°/H 120.4°/V 63.8° (‡5%) - Full HD 1920 x 1080 @ 15 fps (configurable)
Expandable Cameras: TVI x 2
Storage: 3GB RAM / Up to 1TB Storage**
Expandable Storage:
Dual Micro SD Slots (Support up to 512GB/slot)
- Single SD card with 512GB supports approximately 100 hours storage (inward/outward cameras)**
- Dual SD cards with 1TB supports approximately 140 hours storage (inward/outward/2x side cameras)**
Sensors: 3-axis Accelerometer, 3-axis Gyro, Thermal Sensor
Boot Up Time: Cold boot: 25s; Resume recording from parking mode: 2s
Parking Mode: With impact detection
** Actual storage capacity may vary depending on use cases, selected frame rates, bit rates, and resolution
