TN3640
Track and monitor your fleet and equipment in near real-time
Keeping an eye on your operation around the clock can be tiring and difficult when monitored through manual practices – paper trails get long, constant calls to drivers to see where they are, unhappy clients due to delays.

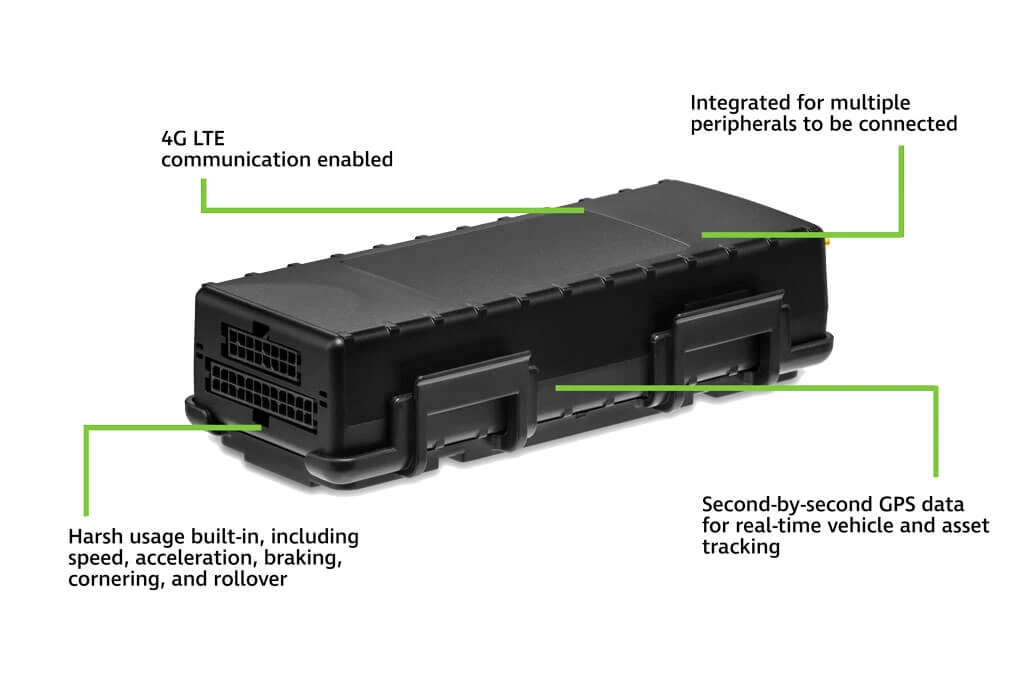

Teletrac Navman’s TN3640 is a GPS enabled tracking device that collects and sends information directly from the vehicle to you via a fleet management solution. Operating standalone or paired with an MT501 for integrated driver messaging and navigation, you create a powerful fleet and equipment management system that provides all the data you need to make the best decision.
The TN3640 is fully integrated with the DIRECTOR platform, providing businesses with the latest and most trusted in-vehicle technology for their fleet.
Peripherals
TN3640 is an integrated device that allows for approved peripheral devices to be connected, giving your business the power to manage vehicles with ease – Satellite Communications, driver identification systems, MT501 driver tool, as well as EDR1 for RUC licence display and RUC Manager solution.
TN3640 Features and Benefits
Powering Insights Through Data Capture
-
Connection to Electronic Distance Recorder (EDR1) for real-time RUC licence display via RUC Manager
-
4G LTE communication enabled to future-proof your fleet and business
-
Real-time vehicle location management, with second-by-second high-definition waypoints
-
Connects with DIRECTOR fleet management software to share location, time, speed, direction, kilometres travelled, time spent onsite and ignition status
-
Harsh usage built-in, including speed, acceleration, braking, cornering, impact and rollover incidents*, along with the ability to monitor and manage driver behaviours such as speed, excessive idling, and unauthorised use.
-
Stores data, like geofences and events, within the device, especially when out of communications range - transmits all data stored when back in network range
-
Real-time alerts based on vehicle activity alerts, insights, analytics & reporting
-
Options for driver login to keep track of different drivers sharing the same vehicle, incl. FOB, keypad, and keycard
-
Allows for connection to additional vehicle data with optional sensor connections, such as the use of seat belts
-
Connects to other devices for a richer reporting or communication solution**
*Refer to the rollover information guide for more information about the use of this feature.
**See list of peripherals within the technical specifications
Technical Specifications
See why this device is right for you
Global Cat M Variant: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/
LTE Cat M1: B19/ B20/ B28
Constellation Support: Hybrid GPS, GLONASS, SBAS Engine (WAAS, EGNOS, MSAS)
Channels: 55 Channel
Tracking Sensitivity: -162 dBm
Acquisition Sensitivity: -156 dBm (hot start), -148 dBm (cold start)
Location Accuracy: ~2.0m CEP Open Sky (SBAS 24 hours static)
Location Update Rate: Up to 4 Hz
AGPS Location assistance capable
Peripherals: MT501, EDR1, RUC Manager, NavCAN, Driver ID, Satellite Communications, Duress Button
Digital Inputs: 4 (high/low bias selectable 0-30 VDC)
Digital Outputs: 3 (open collector relay 150mA)
Analog Inputs: 2 external ADC inputs
Accelerometer: Built in, triple-axis (driver behavior, impact detection, motion sensing, rollover detection)
Status LEDs: 4 (GPS, cellular, VBUS, BT)
Serial Interface: 1 x TTL, 1 x RS232 (TTL port converted to RS232 in the cable)
Operating Voltage:
12/24 VDC Vehicle Systems
9-30 VDC (start-up, operating)
7-32 VDC (momentary)
Power Consumption:
Typical 450uA @ 12V (deep sleep)
Typical 15mA @ 12V (radio-active sleep)
Typical 100mA @ 12V (active tracking w/GPS and cell enabled)
Battery Capacity: 1000 mAh
Battery Technology: Lithium-Ion
Charging Temperature: 0° to +45° C
Temperature:
-30° to +60° C (connected to primary power)
-10° to +60° C (operating on internal battery)
-20° to +25° C ≤ 6 months (long term storage with battery)
Humidity: 95% RH @ 50° C non-condensi
Shock and Vibration: U.S. Military Standards 202G, SAEJ1455
ESD: SAE J1113-13 (4 KV Limit)
Dimensions: 145 x 53 x 33 mm
Weight: 142 g w/ 1000mAh battery
IP Rating: IP4X
Certifications: FCC, IC, PTCRB, ROHS, RCM
